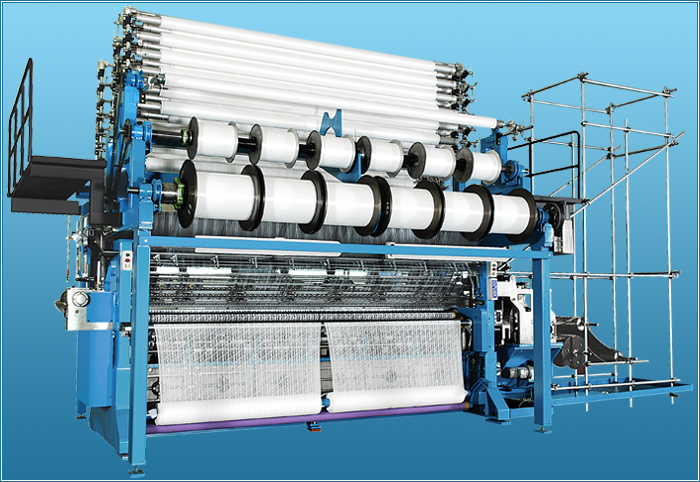

Type of machine(model)

DS - RSCM

Working width

132"=3352mm
150"=3810mm

Gauge (number of needles per 25.4mm)

E-18, 24

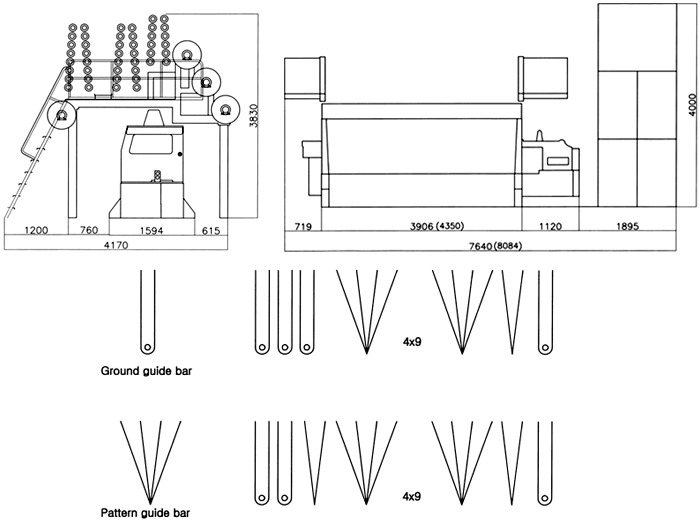

Ground guide bar

3 bar

Pattern guide bars

40pcs

Electrical drive

Main motor of 5.5Kw with inverter control

Warping beam frame

21"×21", 4pcs(beam : 152m/m)

Speed of machine

Max 380 rpm

Needle type

Compound Needle
