DS-RD7/2-12(EL)
Home > Products > DS-RD7/2-12(EL)
DUKSOO MACHINERY IND¡¯L CO. has tried the best effort to the development of material design which is suitable to the latest trend with the independent technology (Technical textile such as automobile, shoes, climbing backpack etc.)for past 30 years.

Type of machine(model)

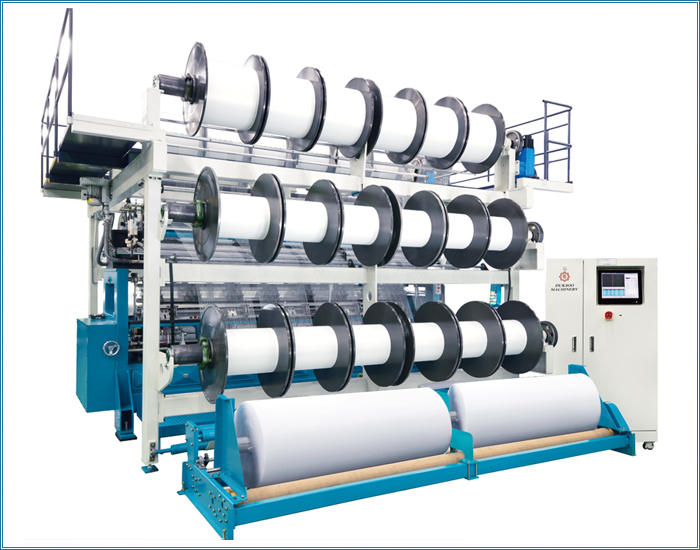

DS-RD7/2-12(EL)

Main Program

Parameter

Gauge

E22, E24

Working Width

70", 132"

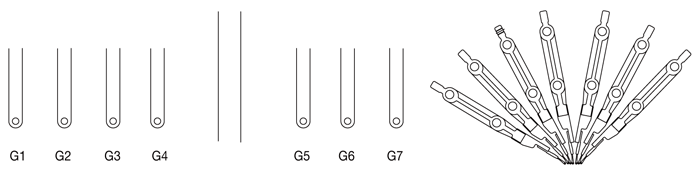

Bar Number

7 Ground Bars

Speed

Max. 850

Ground Bar, Jacquard Bar Shogging Manner

Pattern Shogging/Electronic Shogging

Let-off Manner

7 Set of EBA Electronic Let-off

Draw-off Manner

Electronic Draw-off

Take-up Manner

Constant Tension Take-up

Knock Over Plate Distance

2~12mm

Beam

¨ª30" ¡¿ 21", ¨ª40" ¡¿ 21"

Main Power

3.75kw, 5.5kw
