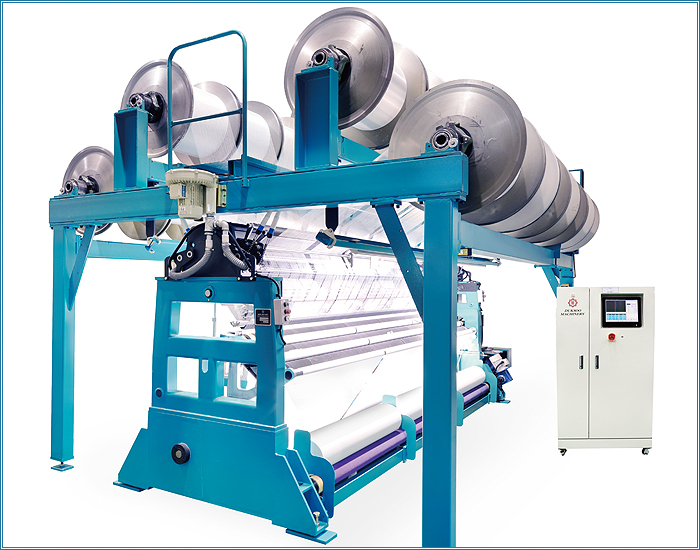

DS-RS4(EL) |
Home > Products > DS-RS4(EL) |
|
 |
|
DUKSOO MACHINERY IND¡¯L CO. has tried the best effort to the development of material design which is suitable to the latest trend with the independent technology (Technical textile such as automobile, shoes, climbing backpack etc.)for past 30 years. |
|
|
Type of machine(model) |
DS-RS4(EL) |
Main Program |
Parameter |
Gauge |
E18, E20, E22, E24 |
Working Width |
132", 152" |

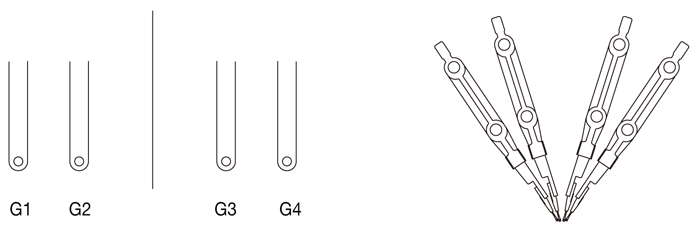

Bar Number |
4 Ground Bars |
Speed |
Max. 600 |
Ground Bar, Jacquard Bar Shogging Manner |
Pattern Shogging/Electronic Shogging |
Let-off Manner |
4 Set of EBA Electronic Let-off |
Draw-off Manner |
Electronic Draw-off |
Take-up Manner |
Constant Tension Take-up |
Beam |
¨ª30" ¡¿ 21", ¨ª40" ¡¿ 21" |
Main Power |
3.75kw, 5.5kw |
|
|
|
